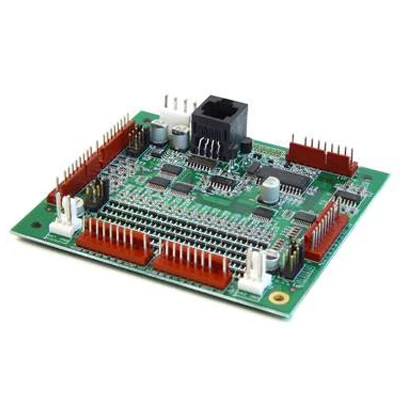

RN1100

RN1100
  • Digital Inputs: 24, protected to +/-40VDC, switching threshold is 1.5V nominal
  • Digital Outputs: 16, pushpull up to 200mA each, 40VDC max
  • Analog Inputs: 4 buffered channels 10-bit resolution, 8-bit accuracy, sample rate
  • 1.5K samples/s,
    • 2 channels 0-10V, single ended
    • 1 channel 0-1V, single ended
    • 1 channel -0.25-.25V differential input resistance >100K
